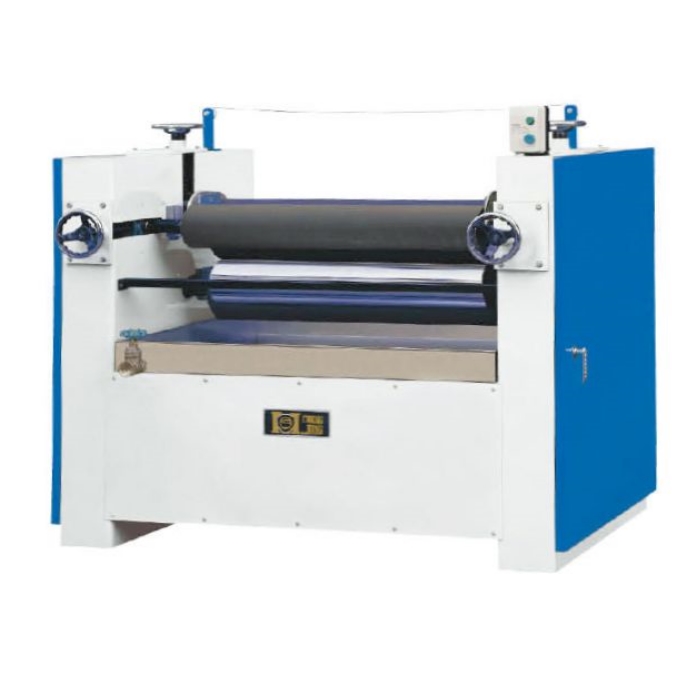

特點(FEATURES)
- Rapidity for gluing speed, time & labor-saving, furthermore, to couple with lumber board width, there are being with five models for customers to select.
- During gluing processing, the glue spreading volume adjusting can be adjusted freely at two ends of the machine and can be purchased the synchronous adj. device as optional, as for the glue spreading thickness can be adjusted freely in 0.5-50mm range, but also can be purchased the synchronous elevating device as optional.
- The glue spreading rollers, those are rubber roller & electro-plated steel roller in general, the rubber roller is adopted high-quality acid & alkane resistant & thermal resistant roller which can be cleaned by cold or warm water, but also can be purchased the stainless steel roller as optional thus, prolong servicing life.
- This spreader is suitable for plywood, thin board, veneer, adjacent commodity, plastic, leather-wares, etc., for glue spreading and adhesive use.

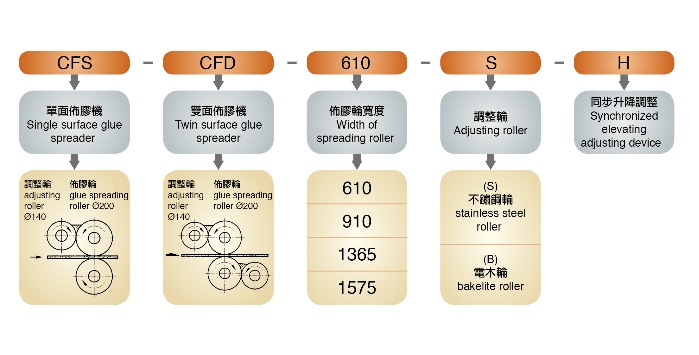

規格(Specification)
Model |
Width |
Kw |
Machine size |
Machine Wt. |
CFS-610S |
550mm |
0.75kw |
1300 x 800 x 1400mm |
560 kgs |
CFS-610B |
||||
CFS-910S |
850mm |
0.75kw |
1700 x 800 x 1400mm |
630 kgs |
CFS-910B |
||||
CFS-1365SH |
1300mm |
1.5kw |
2150 x 800 x 1400mm |
780 kgs |
CFS-1365BH |
||||
CFS-1575SH |
1520mm |
1.5kw |
2300 x 800 x 1400mm |
900 kgs |
CFS-1575BH |
Model |
Width |
Kw |
Machine size |
Machine Wt. |
CFD-610S |
550mm |
0.75kw |
1300 x 900 x 1400mm |
620 kgs |
CFD-610B |
||||
CFD-910S |
850mm |
0.75kw |
1700 x 900 x 1400mm |
700 kgs |
CFD-910B |
||||
CFD-1365SH |
1300mm |
1.5kw |
2150 x 900 x 1400mm |
860 kgs |
CFD-1365BH |
||||
CFD-1575SH |
1520mm |
1.5kw |
2300 x 900 x 1400mm |
980 kgs |
CFD-1575BH |
