CHL- Rollers Press
特點(FEATURES)

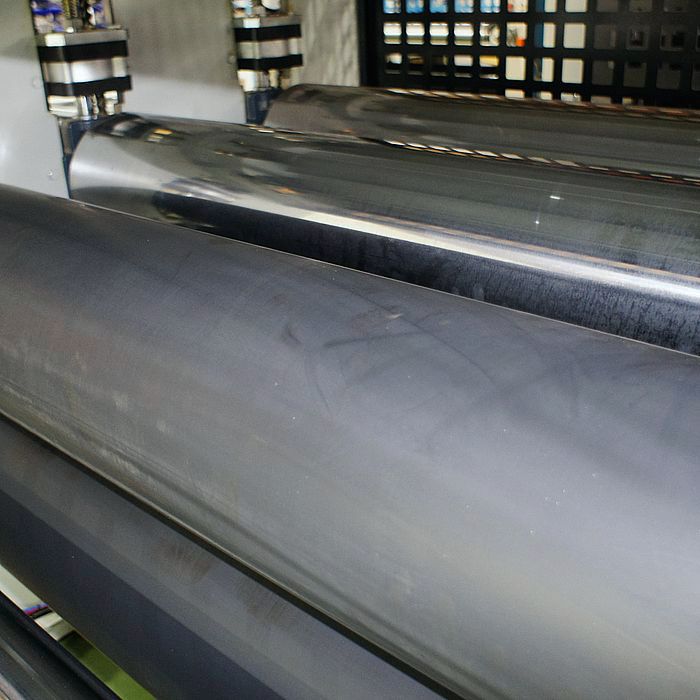

- The large diameter pressing roller is wrapped in suited rubber.
- Pneumatic pressure can be adjusted on the control panel.
- The upper roller is lifted by electric adjustment with a dial display.
- Speed Adjustment also through digital display. (20-30M/Min)
- Upper rollers can be adjusted dimension independently.
- Control panel fully integrated with the machine.
- Pressing roller opening over 80 mm.
- A single motor drives 2 to 4 pressure rollers.
- An optional electroplated pressing roller (with optional heating) is also available.

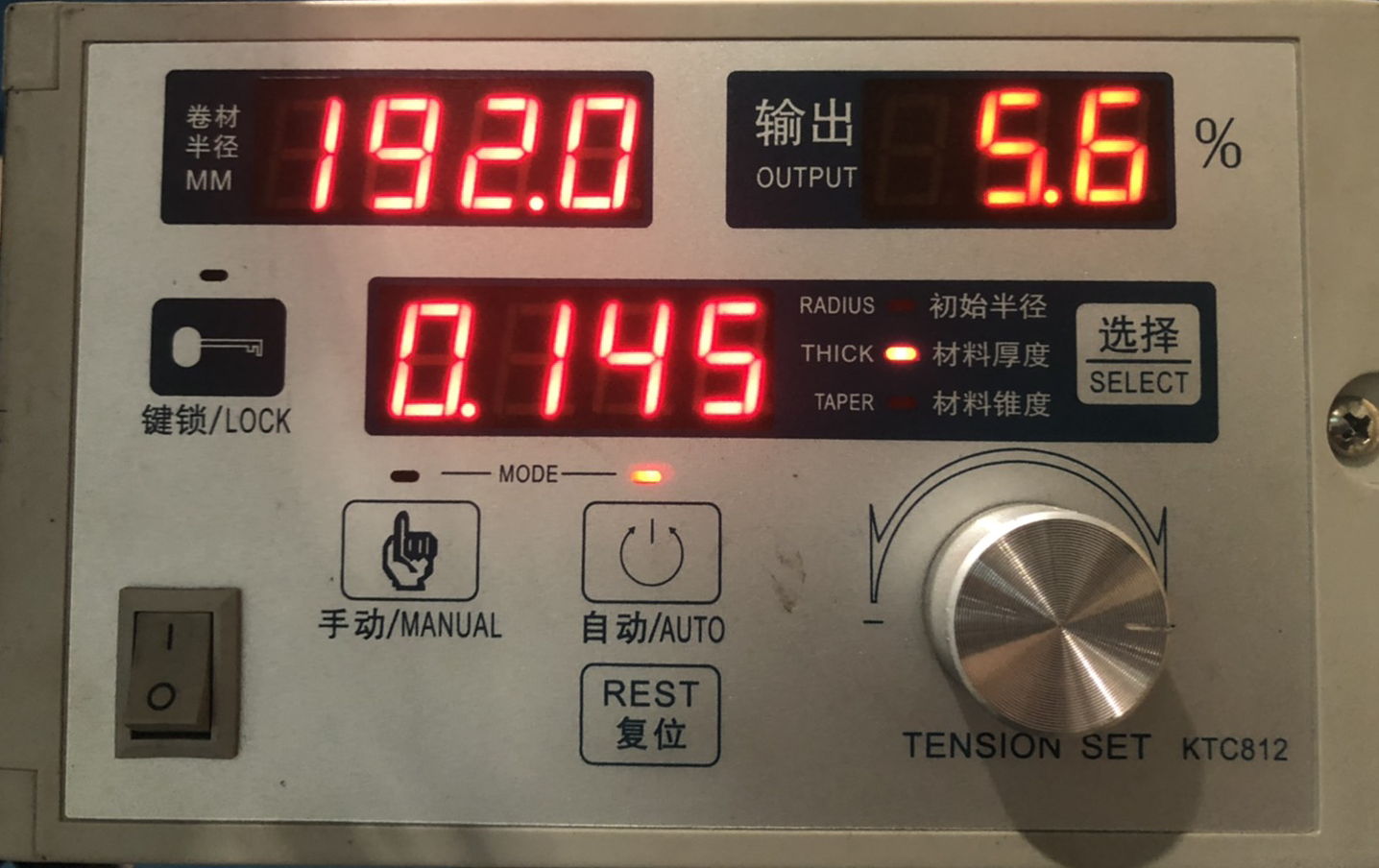

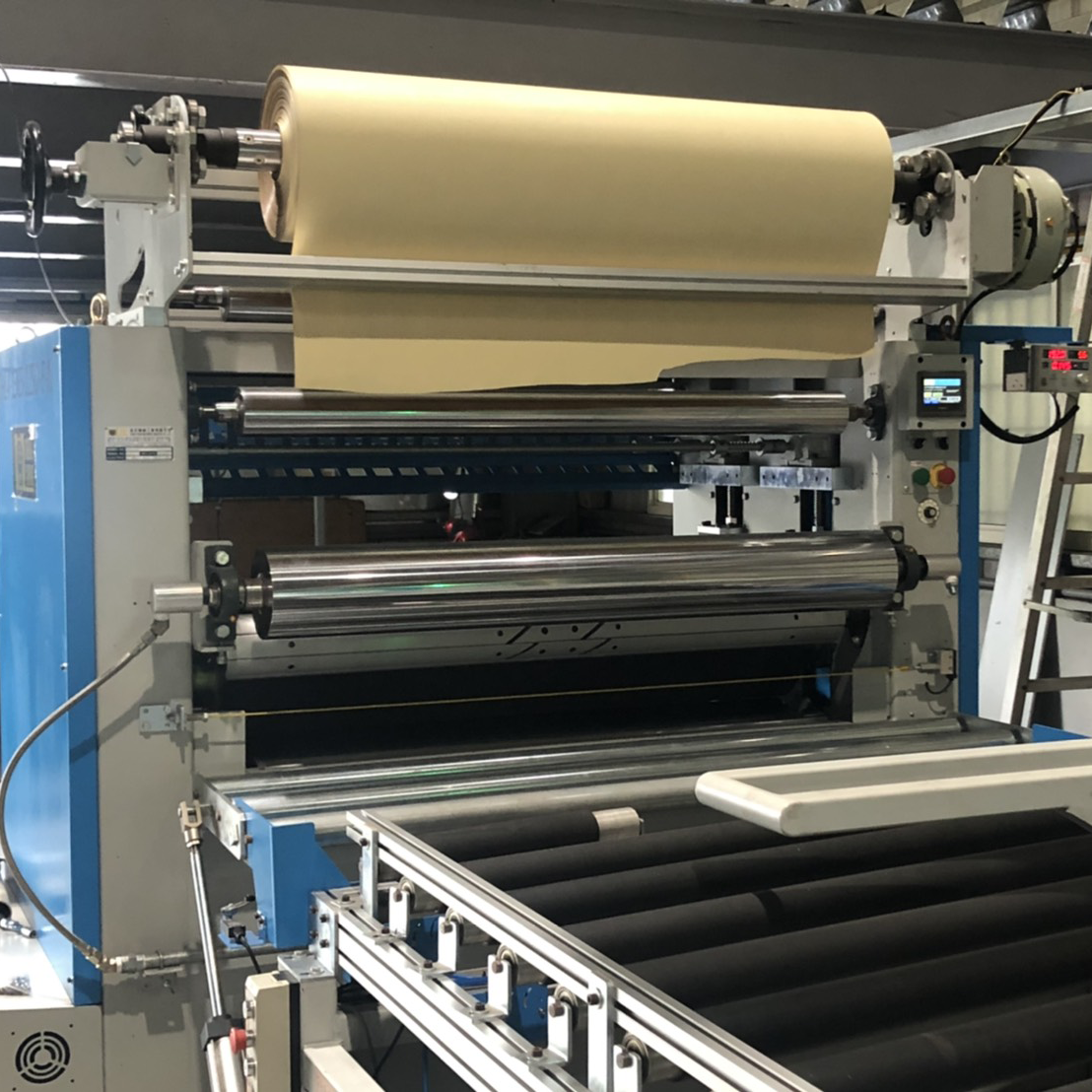

- In order to adhere raw material with PVC roll, the upper rolled material unwinding device is available for option.
Actual drill
規格(Specification)
|
Models |
Max. Applying Width |
Dia. Roller |
Power(Hp) |
|

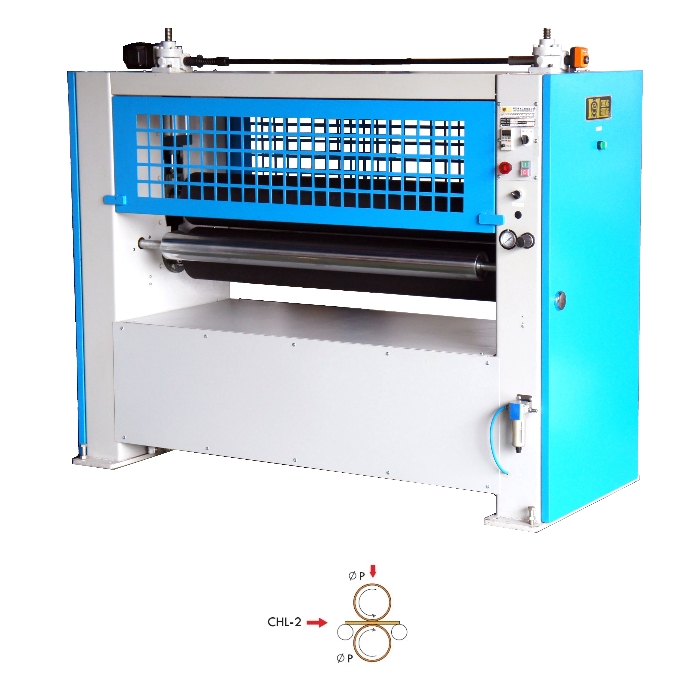

CHL-2-700 |
600mm |
200 |
1 |
|
CHL-2-1400 |
1300mm |
200 |
2 |
|
CHL-2-1600 |
1500mm |
250 |
2 |
|

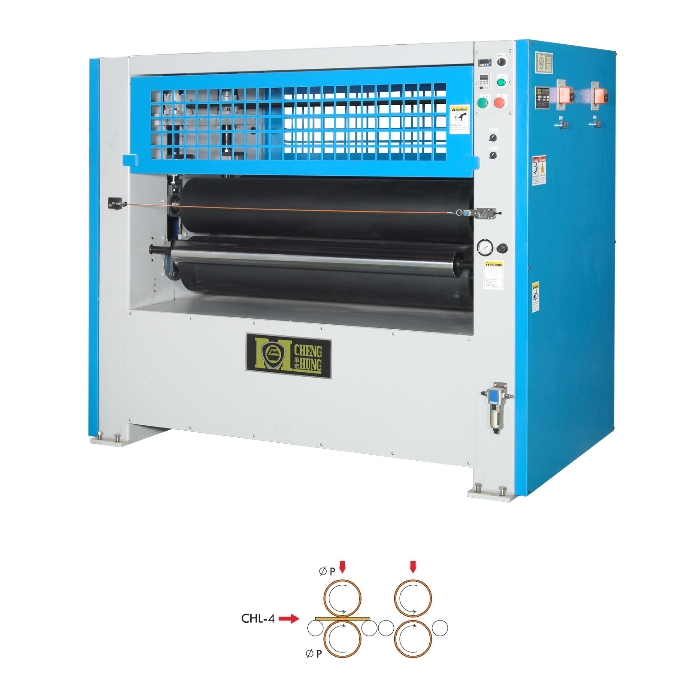

CHL-4-700 |
600mm |
200 |
2 |
|
CHL-4-1400 |
1300mm |
250 |
2.5 |
|
CHL-4-1600 |
1500mm |
250 |
2.5 |
|
CHL-6-700 |
600mm |
250 |
2.5 |
|
CHL-6-1400 |
1300mm |
250 |
2.5 |
|
CHL-6-1600 |
1500mm |
250 |
5 |
